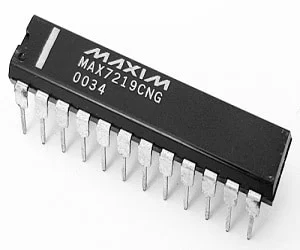

MAX7219CNG LED Display Driver IC – 28‑Pin PDIP, Common‑Cathode
The MAX7219CNG is a versatile, serial‑interface driver that lets you control up to eight 7‑segment LED digits, an 8×8 LED matrix, or up to 64 individual LEDs with just three pins from a microcontroller. Housed in a classic 28‑pin PDIP package, it’s perfect for breadboard prototyping and fits seamlessly into any hobbyist or classroom kit. Its common‑cathode architecture simplifies wiring, while the built‑in constant‑current sources and multiplexing engine eliminate the need for external resistors or complex timing code.
What Students Will Learn
Working with the MAX7219CNG gives learners hands‑on experience with serial communication (SPI), PWM brightness control, and multiplexed display techniques. Students will design, code, and debug real‑world projects such as digital clocks, scrolling text signs, sensor readouts, and game scoreboards—building confidence in hardware‑software integration, power budgeting, and troubleshooting.
Key Features
- 3‑wire SPI interface (DIN, CLK, CS) – minimal pin count
- Supports 8×7‑segment, 8×8 matrix, or 64‑LED dot‑matrix configurations
- Built‑in 10 mA constant‑current sources for uniform brightness
- Programmable intensity (0‑15) and scan‑limit (1‑8 digits)
- Automatic multiplexing up to 1 kHz refresh rate, reducing MCU load
- Low‑power shutdown mode for battery‑operated projects
- Robust 28‑pin PDIP package – easy to insert into breadboards or sockets
Why It’s Great for Makers & Educators
The MAX7219CNG turns a daunting LED array into a plug‑and‑play component, letting students focus on creative coding rather than tedious wiring. Its reliable performance, low cost, and wide‑support documentation (datasheets, Arduino libraries, example sketches) make it a go‑to choice for labs, hackathons, and personal projects. Whether you’re building a vintage arcade scoreboard or a modern IoT status panel, this driver gives you crisp, flicker‑free visuals with minimal hardware overhead—making every learning experience both fun and professional.
