L293D Motor Driver Shield

L293D Motor Driver Shield – Robotics

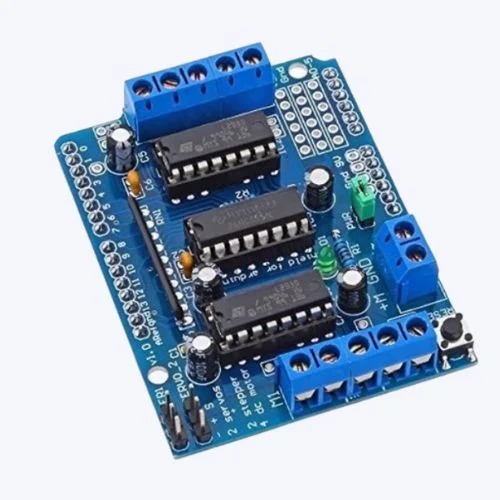

The L293D Motor Driver Shield is a compact, plug‑and‑play board that stacks directly onto any Arduino‑compatible microcontroller, giving you instant control over two DC motors, stepper motors, or a single bipolar motor. Powered by the classic L293D dual H‑bridge IC, the shield handles up to 600 mA per channel (1.2 A peak) and tolerates motor voltages from 4.5 V to 36 V, making it ideal for everything from simple line‑following bots to more ambitious wheeled platforms and robotic arms.

With this shield, students dive into core STEAM concepts: they learn how H‑bridge circuits change motor direction, how PWM (pulse‑width modulation) regulates speed, and how to implement acceleration ramps, braking, and feedback loops in code. Hands‑on projects reinforce physics (torque, power, friction), mathematics (calculating gear ratios and timing), and computer science (state machines, sensor integration). The visual, block‑based Arduino IDE and the optional Arduino C library let learners progress from drag‑and‑drop programming to full‑featured sketches at their own pace.

Key Features

• Dual H‑bridge L293D chip with independent direction and speed control for each motor
• On‑board 5 V regulator and screw terminals for easy wiring of motors, encoders, and sensors
• Built‑in protection diodes and thermal shutdown for safe operation in classroom labs
• Compatible with Arduino Uno, Nano, Mega, and most ESP32‑compatible boards via standard pin headers
• Comprehensive starter guide, example code, and curriculum‑aligned lesson plans for STEAM educators

Why It’s Perfect for STEAM Education
