HC-SR04 Ultrasonic Distance Sensor
Turn echoes into exact measurements; HC‑SR04 lets students map motion and distance with ultrasonic precision!
+0 points earned
HC‑SR04 Ultrasonic Distance Sensor – Motion & Position Sensors

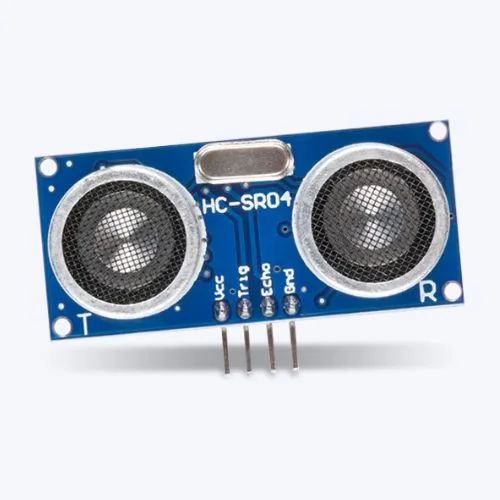

The HC‑SR04 is a compact, low‑cost ultrasonic module that measures distance by emitting a 40 kHz sound pulse and timing how long it takes to echo back from an object. With a detection range of 2 cm to 4 m and a resolution of about 3 mm, it can be interfaced directly with Arduino, Raspberry Pi, micro:bit, or any microcontroller that supports digital I/O. The sensor’s four‑pin layout (VCC, Trig, Echo, GND) makes wiring simple, while its built‑in transducer pair provides reliable performance even in bright ambient light, making it ideal for classroom labs and hobby projects alike.
What students will learn & why it shines in STEAM
Working with the HC‑SR04 introduces learners to core concepts in physics (sound wave propagation, speed of sound), mathematics (geometry, trigonometry, data averaging), engineering (circuit design, sensor integration), and coding (real‑time data acquisition, conditional logic). Projects such as obstacle‑avoiding robots, smart parking systems, water‑level monitors, and interactive art installations let students apply theory to tangible results, fostering problem‑solving, iterative design, and interdisciplinary collaboration.
Key Features
- Measurement range: 2 cm – 4 m (±3 mm accuracy)
- Fast response: ≤ 100 ms update rate
- Easy 4‑pin interface (compatible with Arduino, Raspberry Pi, micro:bit)
- Low power consumption: 5 V, 15 mA typical
- Robust housing: ABS plastic, heat‑resistant up to 70 °C
- Open‑source libraries & example code available for C/C++, Python, MakeCode
Why it’s perfect for STEAM education
The HC‑SR04 bridges the gap between abstract concepts and hands‑on creation, giving students immediate visual feedback through distance read‑outs, LEDs, or motor control. Its affordability lets classrooms equip every group with a sensor, encouraging collaborative experimentation and rapid prototyping. By integrating physics, math, coding, and engineering in one approachable module, the HC‑SR04 empowers learners to design, test, and iterate real‑world solutions; exactly the mindset at the heart of STEAM education.
