BC547 Transistor for Amplification & Switching

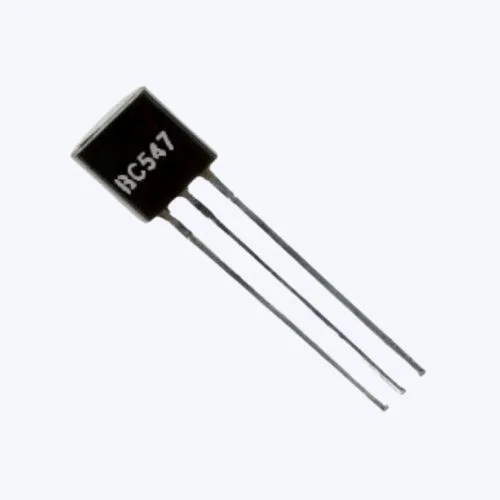

BC547 Transistor for Amplification & Switching – a versatile NPN silicon device that’s the workhorse of any beginner’s electronics lab. Packaged in a compact TO‑92 case, the BC547 can handle up to 100 mA of collector current with a voltage rating of 45 V, making it perfect for low‑power amplification, signal conditioning, and reliable switching tasks in hobby projects, Arduino shields, and sensor interfaces. Its high current gain (hFE = 110‑800) ensures crisp, stable operation whether you’re boosting audio signals, driving LEDs, or building simple logic circuits.

With this component, students dive deep into core STEAM concepts: they’ll model transistor behavior with algebraic equations, simulate biasing networks in software, prototype real‑world circuits on breadboards, and troubleshoot using multimeters and oscilloscopes. The hands‑on experience reinforces physics (semiconductor theory), mathematics (logarithmic gain calculations), engineering design (circuit layout and thermal management), and even art, by creating interactive light‑or‑sound installations. Because the BC547 is inexpensive, reliable, and universally compatible with standard development boards, it encourages iterative experimentation and interdisciplinary projects that bring theory to life in the classroom.
